Hight Voltage Batteries
|
HITEN-HV-AC-S5

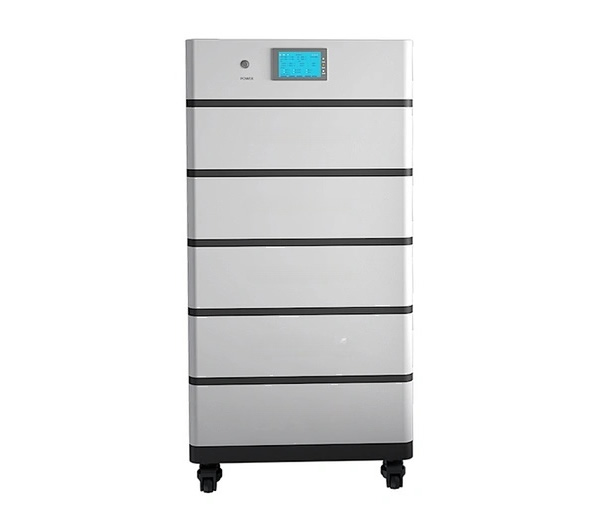

VNICE 512V 28KWh Lithium Iron Phosphate LiFePO4 Battery Pack Energy Storage Systems
Model No. : HITEN-HV-AC-S5
Brand Name : VNICE POWER
Minimum Order : 1 set
Supply Ability : 1000set / Month
Place of Origin : China
Stock Time : 15-20Day
If you want wholesale price, please do not hesitate to contact us. Brand Name : VNICE POWER
Minimum Order : 1 set
Supply Ability : 1000set / Month
Place of Origin : China
Stock Time : 15-20Day
Contact Supplier
Features
Seplos Hiten is a high voltage energy storage system, and can do the
following:
Store energy from solar arrays or wind turbines for use later when it’s dark or
the wind isn’t blowing.
Peak shaving: power from the battery is used to reduce the maximum power drawn
from the utility. This can result in cost savings in some jurisdictions.
Load shifting: power from the battery can be used to reduce the power drawn from
the utility during peak hours when rates are high. The battery is recharged
during off-peak hours when the rates are lower.
Demand response: in some areas, the local utility will pay users to provide
power to the grid when demand is high. This is called “net metering.” Power
flows from the battery to the grid when demand is high, then the battery is
recharged when demand is lower and grid power is cheaper.
Parameter
| Item | Specifications |
| Rated energy(kWh) | 28KWh |
| Configuration | 5*32S1P |
| Nominal Voltage(V) | 512V |
| Nominal Capacity(Ah) | 55Ah |
| Working Voltage(V) | 432-584V |
| Rated charge/ discharge Current(A) | 50A |
| Rated charge/ discharge power( KW) | 25.6KW |
| Working Temperature | - 15-45(°C) |
| Weight(Kg) | 265± 10KG |
| Cell chemistry | Lithium Iron Phosphate |
| Cycle life | 5000 cycles |
| Communication mode | CAN&RS485 |
High Voltage Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
| Sofar | BMS CAN BUS Protocol | CAN | V1.001 |
| Goodwe | GoodWe HV BMS Protocol (CAN) | CAN | V1.4 |
| Deye | CANBUS Protocol Of High Voltage System | CAN | V1.0 |
